Modern firearm rail systems play a crucial role in enhancing weapon modularity and versatility, allowing different accessories to be mounted for various operational needs. Here, we present a detailed comparison of the four most commonly used rail systems, their history, platform compatibility, key advantages, and future trends.
Picatinny Rail (MIL-STD-1913)
History
The Picatinny rail was developed in 1995 by the Picatinny Arsenal in the U.S. Army. Its primary goal was to create a standardized platform for mounting accessories, building upon the earlier Weaver rail but with a fully standardized design.
Weapon Platform Compatibility
Picatinny rails are the most widely used rail system globally and are compatible with almost all modern firearms, including sniper rifles, assault rifles, handguns, and light machine guns. Firearms like the AR-15, M4, M16, and SR-25 widely utilize this rail for mounting optics, lasers, and tactical lights.
Advantages of Picatinny Rail
- Universal Compatibility: The standardized dimensions of Picatinny rails ensure that nearly all firearm accessories can be mounted, making it highly adaptable.
- Durability: Its robust design allows for secure attachment of accessories, even under intense recoil and vibration during use.
- Modularity: Users can easily switch between different attachments, making it a versatile and multi-functional system.
Manufacturing Challenges
- Precision Manufacturing: Picatinny rails require high precision in slot width (0.206 inches) and spacing (0.394 inches), meaning manufacturers must maintain exact tolerances to ensure compatibility.
- Material Costs: Due to the need for high-strength aluminum or steel, production costs can be high, especially for military-grade products designed to withstand extreme conditions.
Weaver Rail
History
The Weaver rail was developed in the early 20th century by Weaver Optics and initially aimed at mounting scopes on hunting rifles. It is the precursor to the Picatinny rail but with a simpler, less standardized design.
Weapon Platform Compatibility
Weaver rails are primarily found on hunting rifles and older military weapons. While their use has declined with the rise of Picatinny, they are still present on some legacy rifles.
Differences from Picatinny Rails
- Non-Standard Slot Spacing: Weaver rails lack the uniform slot spacing seen in Picatinny rails, meaning some Weaver accessories are incompatible across different Weaver systems, while Picatinny accessories will not fit.
- Compatibility: While Weaver accessories can be used on Picatinny rails, the reverse is often not true due to the narrow width of Weaver rail slots.
Advantages of Weaver Rail
- Simplicity: Ideal for civilian markets, Weaver rails provide a simple and practical solution, especially for weapons with low recoil.
- Lower Cost: Weaver rails are generally cheaper to manufacture due to the lack of strict standardization, making them more affordable for budget-conscious users.
Warsaw Pact Rail (Side Mount Rail)
History

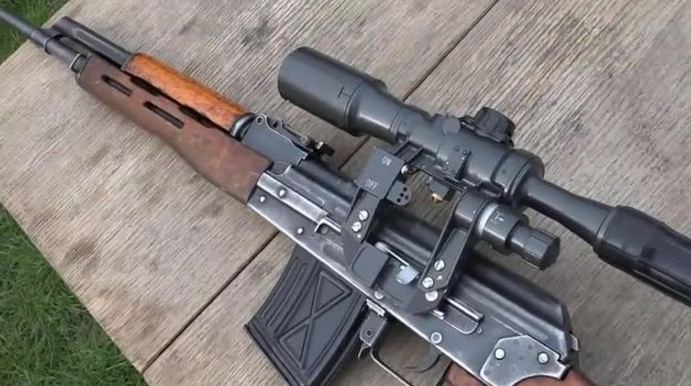

The Warsaw Pact rail, or side-mount rail, was extensively used in Soviet-era firearms and remains common in Eastern European military weaponry. It is most notably seen on the SVD Dragunov sniper rifle and the AK-series rifles.
Weapon Platform Compatibility

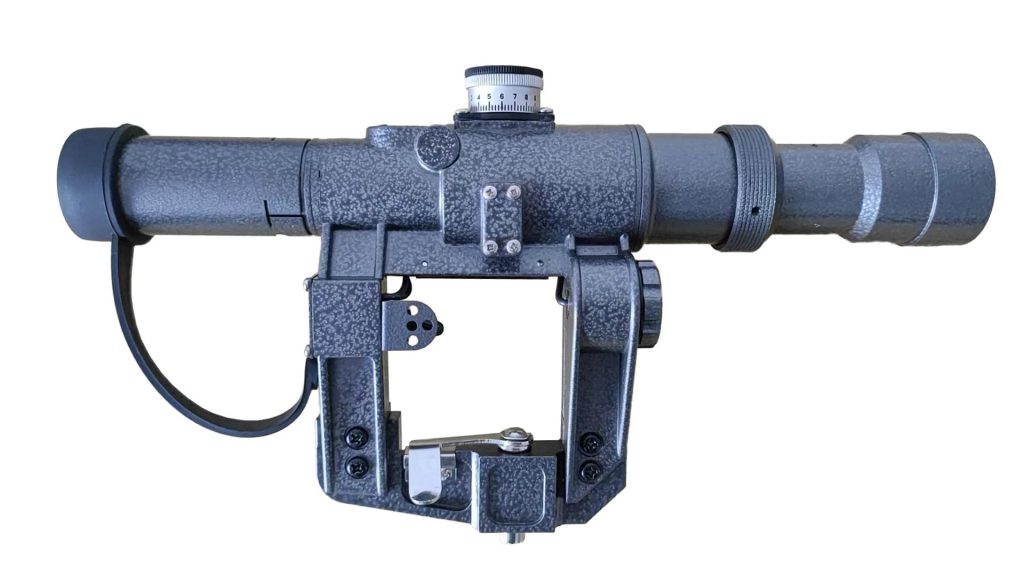

This rail system is standard on SVD sniper rifles, AK-47/AK-74 rifles, and PKM machine guns. It allows for the easy installation of optics, such as the iconic PSO-1 scope, enhancing long-range shooting accuracy.
Advantages of Warsaw Pact Rail
- Sturdiness: The design is simple yet durable, ideal for quick detachment of optics in combat conditions.
- Optimal Compatibility: These rails are perfectly suited for classic Soviet weapons, ensuring these platforms can still use modern optics.
FORESEEN OPTICS’ Innovations
At FORESEEN OPTICS, we continue to produce high-quality Warsaw Pact side rails for SVDs and AK-series rifles. These rails are designed to support modern optics while maintaining the integrity of the original weapon platform, ensuring long-term usability. Additionally, custom materials and designs have enhanced their reliability on modern battlefields.

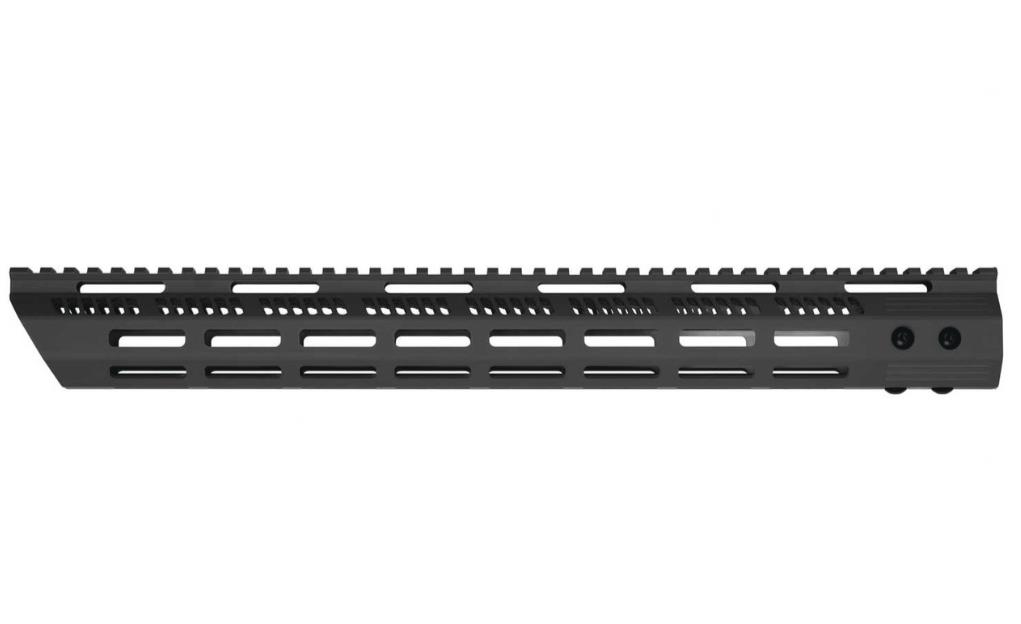

M-LOK System (Modular Locking System)
History
Developed by Magpul in 2014 as an evolution of their MOE system, the M-LOK system offers a lighter and more modular alternative to traditional rail systems. Its design allows for accessory rails to be attached only where needed, reducing overall weight.
Weapon Platform Compatibility

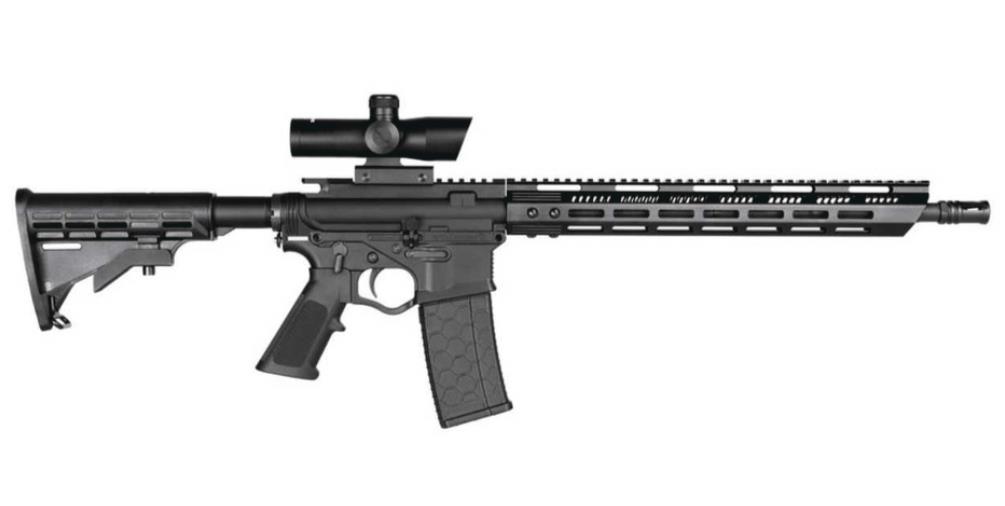

M-LOK is widely used in modern assault rifles, tactical rifles, and sniper rifles, particularly in platforms such as the AR-15 and the AK-12. Its flexible attachment system makes it ideal for high-performance rifles.
Advantages of M-LOK System
- Lightweight: M-LOK eliminates the need for continuous rail sections, significantly reducing weapon weight.
- Modularity: Its adjustable slots provide users with greater flexibility in positioning accessories, allowing for full customization.
- Expanding Adoption: Due to its ease of use and versatility, M-LOK is quickly becoming the standard for next-generation tactical rifles.
Future Outlook
With more military and civilian users shifting towards lightweight, customizable rail systems, M-LOK’s future is promising. Its open-source design encourages widespread adoption by manufacturers, making it a global industry standard.
Manufacturing Restrictions
As of 2015, China has imposed restrictions on the production of M-LOK rails for export, categorizing them as firearm accessories. FORESEEN OPTICS has received numerous M-LOK production requests but remains compliant with local laws, which prevent us from manufacturing M-LOK systems. Despite this, M-LOK continues to gain traction in international markets.
Conclusion
Among the four primary rail systems, the Picatinny rail remains the most widely used, thanks to its standardization and versatility. M-LOK represents the future of lightweight modularity, especially for tactical firearms, while Weaver rails—though increasingly replaced by Picatinny—still serve in legacy weapon systems. Finally, the Warsaw Pact rail continues to be critical for classic Soviet firearms, with FORESEEN OPTICS leading in the production of these rails to support modern optics and accessories on historic platforms.
