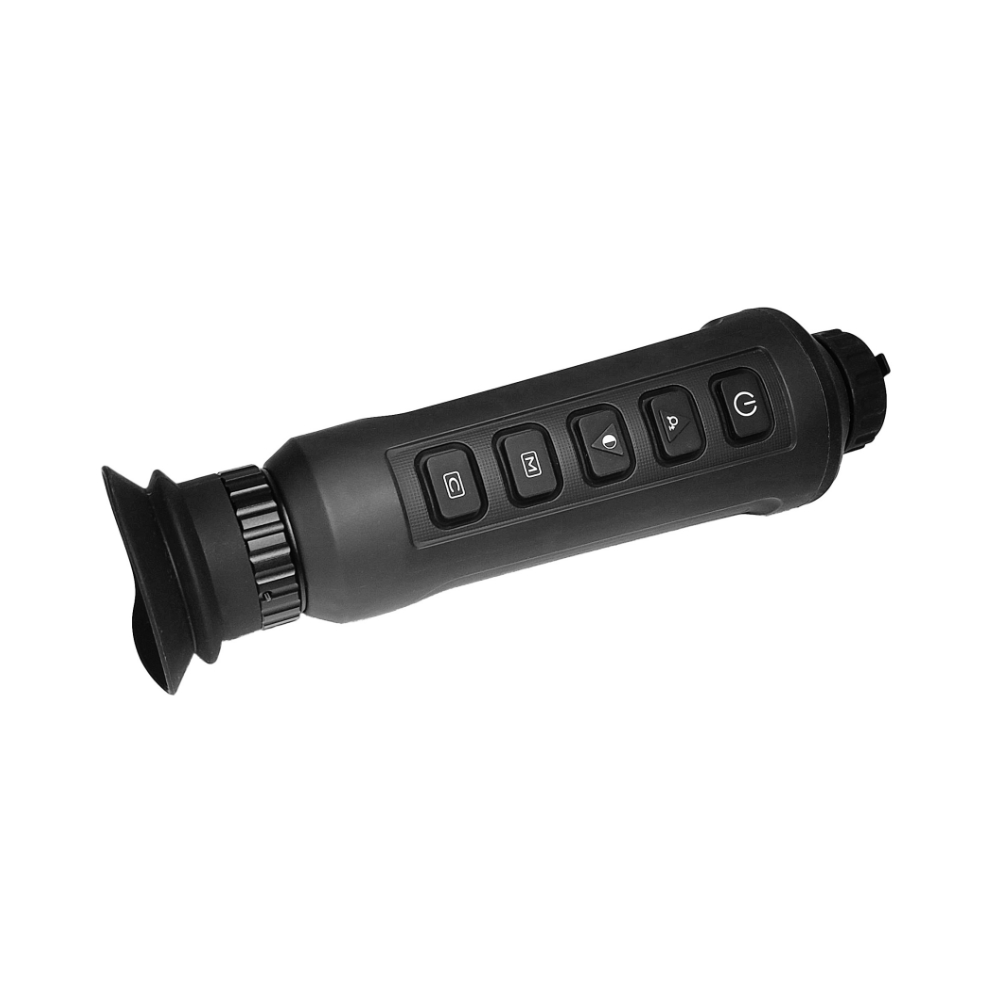

384Ă—288 Thermal Imaging Monocular HDN-CE19

This advanced handheld thermal imaging monocular is purpose-built for field professionals seeking precise heat detection, rugged outdoor performance, and high-definition visual feedback. Powered by a 384×288 vanadium oxide (VOx) uncooled detector, this lightweight monocular delivers 419m recognition distance for large animals, real-time image enhancement, and Wi-Fi connectivity—ideal for wildlife observation, law enforcement patrol, and covert surveillance in extreme environments.

Get A Quote

OVERVIEW

Key Features & Performance Highlights

High-Sensitivity VOx Sensor for Crisp Thermal Imaging

  • Detector: 384Ă—288 vanadium oxide uncooled sensor
  • Response Band: 8 ~ 14 μm NETD < 35mk for superior heat signature clarity 12μm pixel pitch and 50Hz refresh rate ensure smooth thermal visuals

Long-Distance Target Recognition

  • Focal Length: 19mm
  • Recognition Distance:
  • Small animal: 42m
  • Medium animal: 113m
  • Large animal: 419m

Enhanced detail mode supports accurate differentiation at range

OLED Display with Enhanced Color and Contrast Control

  • Display: 1024Ă—768 OLED, crisp image rendering
  • Brightness & contrast: 5-level adjustment
  • Color Modes: Black Hot, White Hot, Red Hot, Fusion

Image detail enhancement and noise reduction supported

Flexible Zoom and Video Recording

  • Electronic zoom: 1x, 2x, 4x, 8x
  • Video recording format: MP4

Quick-access photo/video button for immediate capture

Supports CVBS analog video output

Wi-Fi, Hotspot, and Scene Mode Adaptability

Real-time sharing via Wi-Fi/Hotspot connection

  • Scene Mode Options: Natural / High Brightness / Enhanced
  • Video recording format: MP4

Cursor and menu overlay available for guided navigation

Dead pixel repair and parameter saving functions included

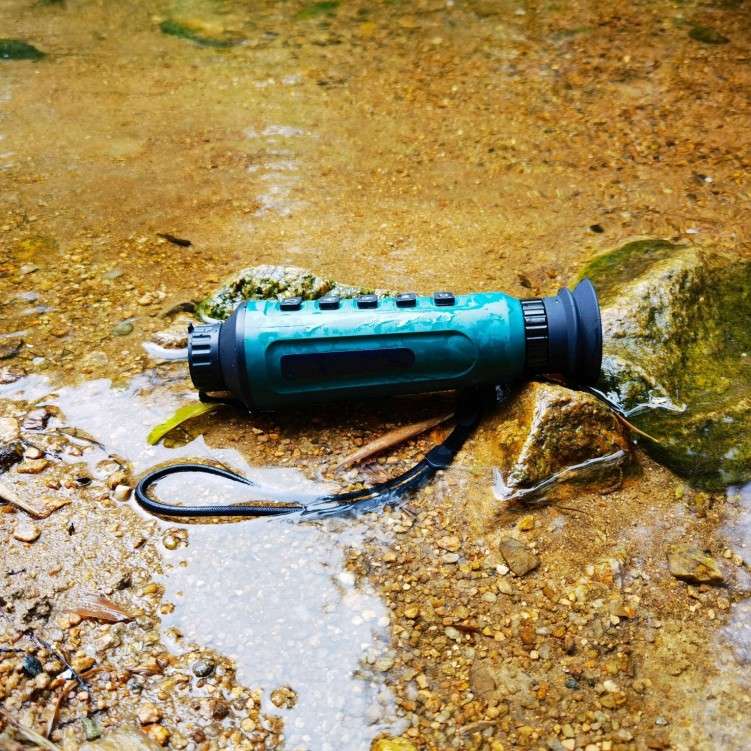

Tough, Lightweight & Weatherproof

IP67 waterproof rating – fully protected against dust and immersion

  • Compact form factor: 58 x 62 x 215 mm
  • Lightweight: only 260g – ideal for long treks
  • Startup time: quick 6 seconds
  • Battery life: ≥8 hours continuous operation
  • Power: USB 5V or DC 2.5 ~ 4.2V, typical 3.6V (low power: 0.85W)

Customizable for Your Brand

Logo and firmware customization available

OEM/ODM support with low MOQ

Custom language interface and startup screens

Quote for Customization

Ideal Applications

  • Wildlife tracking in forests or mountainous terrain
  • Nighttime hunting and game scouting
  • Law enforcement patrols and border security
  • Firefighting and hotspot detection
  • Farm protection and property surveillance
Thermal scope lens
Thermal scope display
Thermal-Optics-military-grade-810x467
Thermal imaging scope screen display

Parameters

Product CodeHDN-CE19HDN-CE25HDN-CE210HDN-CE215
Focal Length19mm25mm10mm15mm
Recognition Distance (Small Animal)42m57m25m50m
Recognition Distance (Medium Animal)113m150m150m203m
Recognition Distance (Large Animal)419m552m280m405m

Product CodeHDN-CE19HDN-CE25HDN-CE210HDN-CE215
Sensor TypeVanadium oxide uncooledVanadium oxide uncooledVanadium oxide uncooledVanadium oxide uncooled
Response Band8 ~ 14 μm8~14 μm8~14 μm8~14 μm
NETD< 35 mk (@25°C, F# = 1.0)< 35 mk (@25°C, F# = 1.0)< 35 mk (@25°C, F# = 1.0)< 35 mk (@25°C, F# = 1.0)
Resolution384X288384X288256X192256X192
Frame Rate50 fps50 fps50 fps50 fps
Pixel Size12 μm12 μm12 μm12 μm

Product CodeHDN-CE19HDN-CE25HDN-CE210HDN-CE215
Display Resolution1024Ă—7681024Ă—768800X600800X600
Display Type OLED OLED OLED 0.32 OLED 0.32
Brightness1-5 adjustable levels1-5 adjustable levels1-5 adjustable levels1-5 adjustable levels
Contrast1-5 adjustable levels1-5 adjustable levels1-5 adjustable levels1-5 adjustable levels
Image Detail EnhancementSupportedSupportedSupportedSupported
AGC ModeAutoAutoAutoAuto
Noise ReductionSupportedSupportedSupportedSupported
Electronic ZoomĂ—1, Ă—2, Ă—4, Ă—8Ă—1, Ă—2, Ă—4, Ă—8Ă—1, Ă—2, Ă—4, Ă—8Ă—1, Ă—2, Ă—4, Ă—8
Pseudo Color ModeBlack Hot, White Hot, Red Hot, FusionBlack Hot, White Hot, Red Hot, FusionBlack Hot, White Hot, Red Hot, FusionBlack Hot, White Hot, Red Hot, Fusion
Dead Pixel RepairSupportedSupportedSupportedSupported
CVBSSupportedSupportedSupportedSupported
Frame Rate50 fps50 fps50 fps50 fps
Startup Image Time6s6s10s10s
Parameter SavingSupportedSupportedSupportedSupported
CursorSupportedSupportedSupportedSupported
MenuSupportedSupportedSupportedSupported

Product CodeHDN-CE19HDN-CE25HDN-CE210HDN-CE215
Power SupplyUSB 5V/DC 2.5 ~ 4.2V (Typical 3.6V)USB 5V/DC 2.5 ~ 4.2V (Typical 3.6V)
Power Consumption0.85W (CVBS off)0.85W (CVBS off)0.85W (CVBS off)0.85W (CVBS off)
Battery Life≥8 hours≥8 hours≥7 hours≥7 hours
Waterproof RatingIP67IP67IP67IP67
Dimensions (mm)58 x 62 x 215 mm58 x 62 x 215 mm58 x 75 x 215 mm58 x 75 x 215 mm
Weight260g260g420g420g

Product CodeHDN-CE19HDN-CE25HDN-CE210HDN-CE215
Photo/Video ButtonSupportedSupportedSupportedSupported
Video Output FormatMP4MP4MP4MP4
WIFI/HotspotSupportedSupportedSupportedSupported
Firmware Upgrade SupportedSupportedSupportedSupportedSupported
Scene Mode AdjustmentNatural, High Brightness, Enhanced ModeNatural, High Brightness, Enhanced ModeNatural, High Brightness, Enhanced ModeNatural, High Brightness, Enhanced Mode
Approximate RangeSupportedSupportedSupportedSupported
Hotspot TrackingSupportedSupportedSupportedSupported
