In modern firearms platforms, Weaver and Picatinny rails are two of the most commonly used accessory mounting systems. They have distinct histories, applications, and manufacturing requirements and are widely used in military, law enforcement, and civilian firearms. In this article, based on FORESEEN OPTICS’ extensive manufacturing experience, we will compare these two rail systems, highlighting their differences and the practical applications in modern weapon platforms. We will also discuss FORESEEN OPTICS’ custom rail manufacturing for iconic firearms and the limitations in producing M-LOK systems due to legal restrictions in China.
Weaver Rail: Classic Design and Flexible Applications
Historical Background
Weaver rails were developed in the 1930s by W.R. Weaver Company, initially intended for mounting scopes on hunting rifles. Over time, this system was adapted for other firearm types. While its usage has diminished, Weaver rails are still a popular choice for older and civilian weapons.
Manufacturing Advantages
Based on FORESEEN OPTICS’ bulk production experience, Weaver rails are simpler to manufacture. The slots on a Weaver rail are 0.18 inches wide, and the spacing between slots is not standardized, which means that less precision is required during the manufacturing process. This flexibility in slot placement makes production cheaper and more adaptable for different firearm platforms. In civilian markets, the non-standardized design still holds a niche, especially for users with older rifles or simple attachment needs.
Comparison with Picatinny Rails
- Compatibility: While Weaver accessories can often fit on Picatinny rails, the reverse is not true. Picatinny rails have a wider slot of 0.206 inches, and accessories designed for Picatinny rails usually cannot fit on Weaver rails. This limitation has caused the Weaver system to lose favor, especially as Picatinny becomes the industry standard.
- Use Cases: Weaver rails are more commonly found on older hunting rifles, where complex accessory mounting is less important. As such, its user base has been shrinking.
Picatinny Rail: Standardization and Versatility
Historical Background

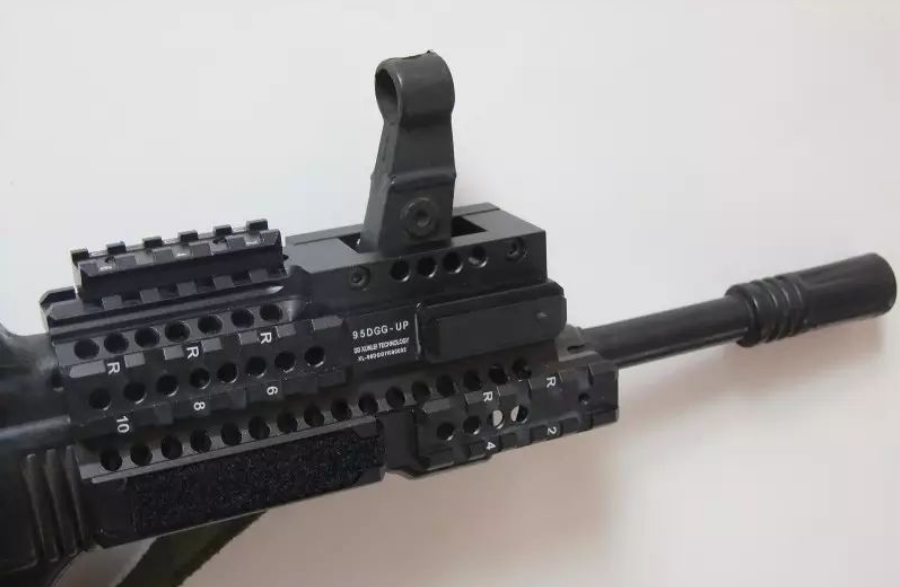

Picatinny rails, standardized as MIL-STD-1913, were developed in 1995 by the Picatinny Arsenal in the United States. Initially designed to meet military needs for standardized accessory mounting, the system quickly became the global standard for both military and civilian firearms.
Manufacturing Challenges
From FORESEEN OPTICS’ perspective, Picatinny rails require higher precision during manufacturing. Each slot must be exactly 0.394 inches apart, and the slot width must measure 0.206 inches. These strict requirements make Picatinny rails more expensive and complex to produce compared to Weaver rails. Our production process involves precision cutting and milling equipment to ensure that every Picatinny rail meets military-grade standards.
Advantages
- Universal Compatibility: Picatinny rails are now the standard platform for firearm accessories. From scopes and tactical lights to laser sights, nearly all modern accessories are designed to fit Picatinny rails.
- Durability: The robust design of Picatinny rails allows them to withstand high-intensity shooting environments, making them ideal for both military operations and law enforcement use.
FORESEEN OPTICS: Expertise in Side-Mount Picatinny Rail Production

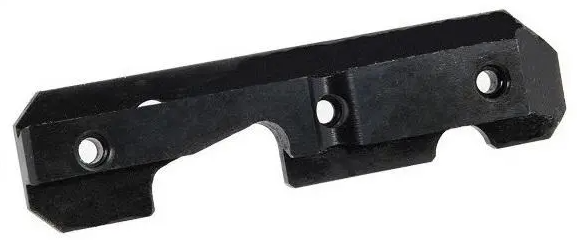

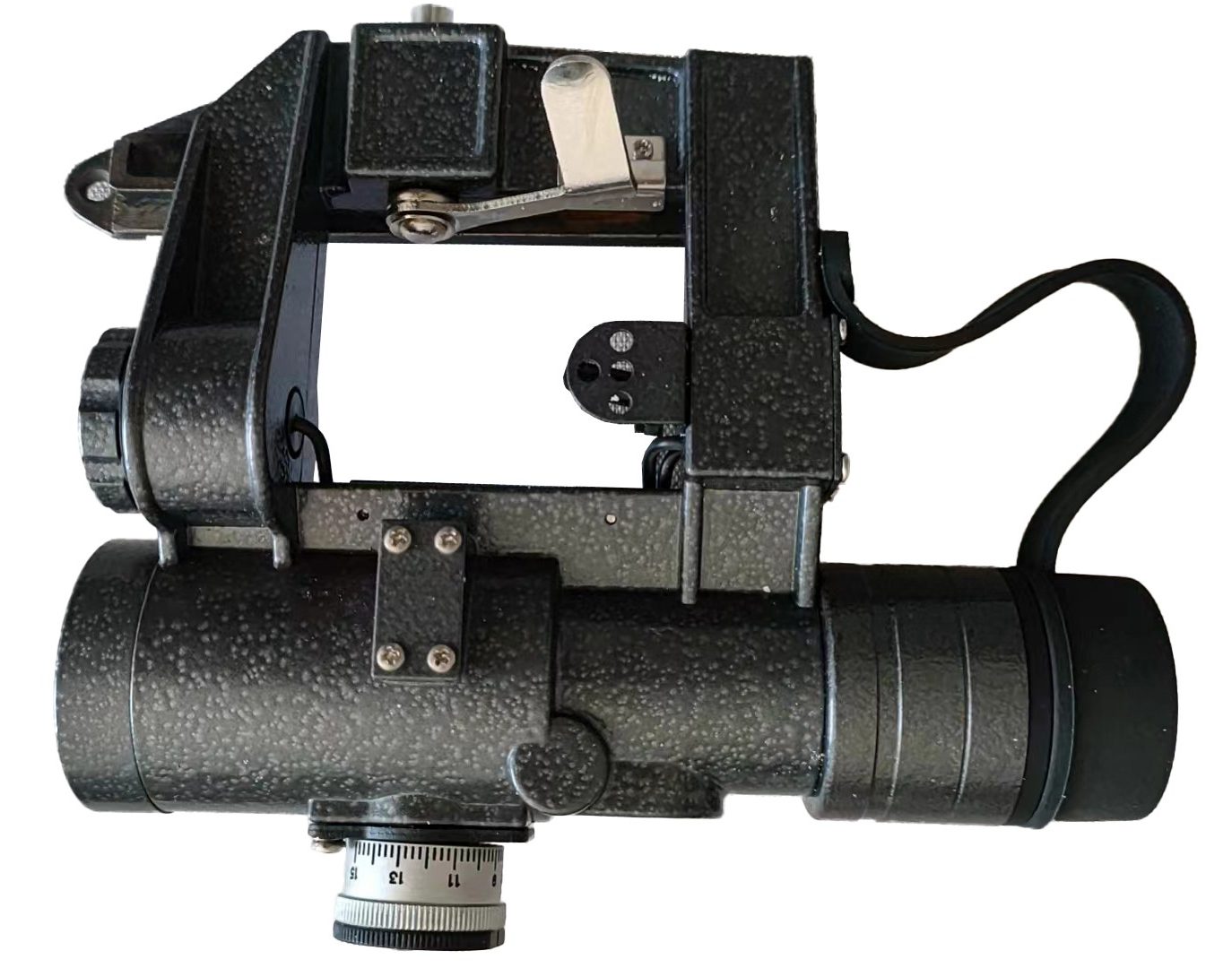

In addition to standard rail production, FORESEEN OPTICS has experience manufacturing custom side-mounted Picatinny rails for firearms like the SVD and AK-74. These iconic firearms originally used Warsaw Pact rails, but by creating side-mounted Picatinny options, we enable these classic rifles to be equipped with modern optical sights and accessories. Our precise manufacturing ensures high-quality attachment solutions, helping clients improve accuracy and functionality in both military and competitive shooting contexts.
M-LOK System: Future Trends and Manufacturing Restrictions

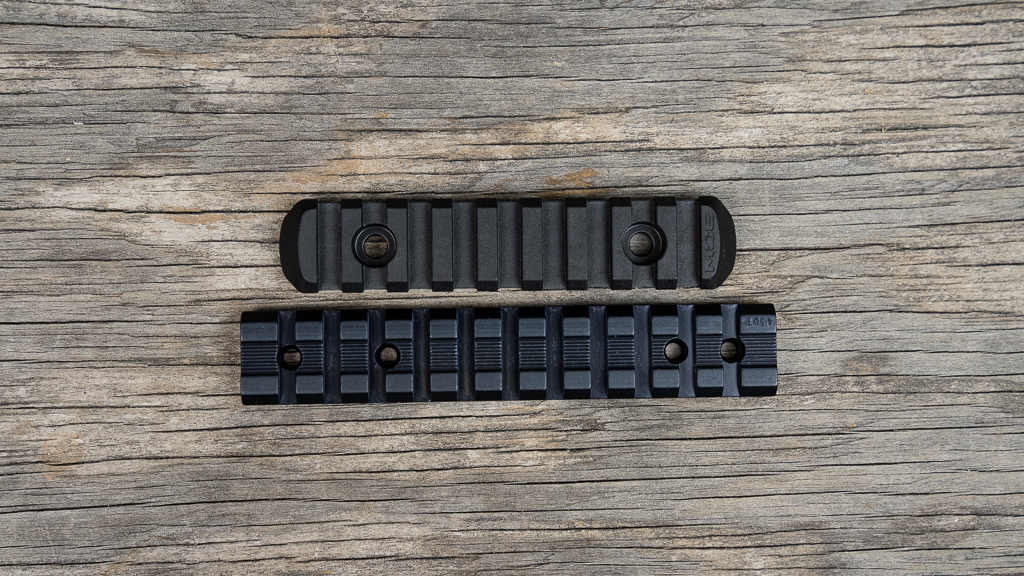

The M-LOK system, developed by Magpul, is a modular rail system that has become increasingly popular due to its lightweight design and flexibility. Unlike traditional rails, M-LOK allows users to install accessory rail sections only where needed, reducing weight and increasing customization.
While we have received numerous requests for M-LOK production, since 2015, China has imposed restrictions on the manufacture of M-LOK rails for export, considering them firearm accessories. As a result, FORESEEN OPTICS adheres to these regulations and has ceased external production of M-LOK rails. Despite this, the M-LOK system continues to see widespread adoption in tactical rifles worldwide.
Conclusion
Among the four primary rail systems, the Picatinny rail remains the most widely used, thanks to its standardization and versatility. M-LOK represents the future of lightweight modularity, especially for tactical firearms, while Weaver rails—though increasingly replaced by Picatinny—still serve in legacy weapon systems. Finally, the Warsaw Pact rail continues to be critical for classic Soviet firearms, with FORESEEN OPTICS leading in the production of these rails to support modern optics and accessories on historic platforms.
